Large Networks

 Home / Mimicapp /Large Networks

OVERVIEW

All types of devices can easily be simulated and managed with Element Managers. The simulation precisely mirrors the MIB object values of both standard and enterprise-specific MIBs, since element managers take full advantage of device-specific values.

  • The following image shows a simulation of a Bay Networks Switch as seen through the Optivity management application.

Here is a simulation of a smaller Bay Networks LattisHub.

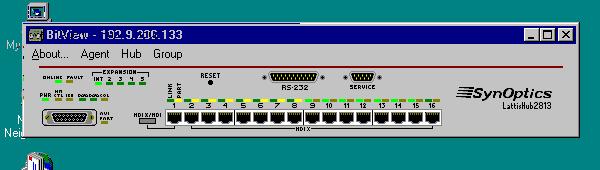

The same LattisHub simulation is shown with the Castle Rock SNMPc Bitview element manager.

An HP AdvanceStack Hub as discovered by the HP AdvanceStack Assistant element manager.

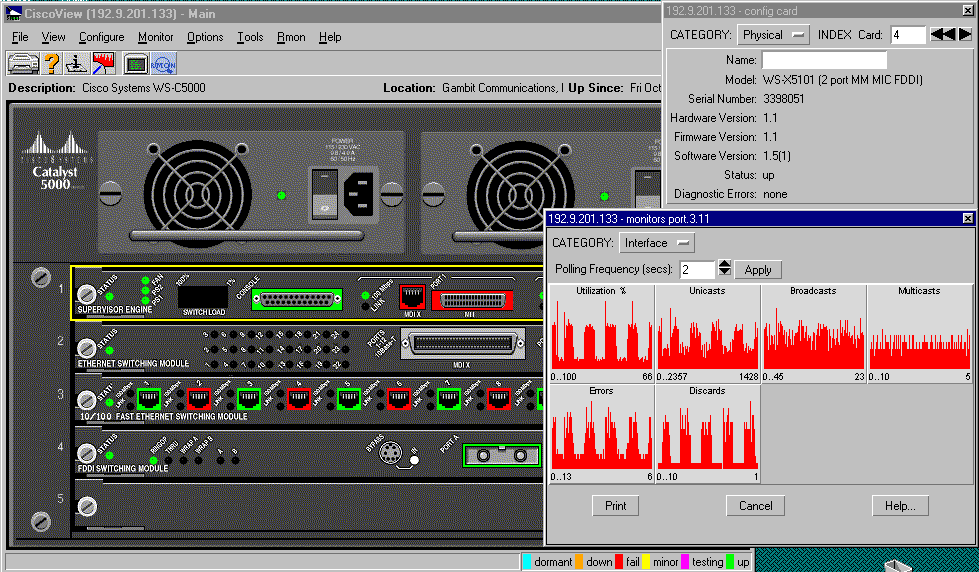

CiscoView is managing a simulation of the Cisco Catalyst 5000 switch

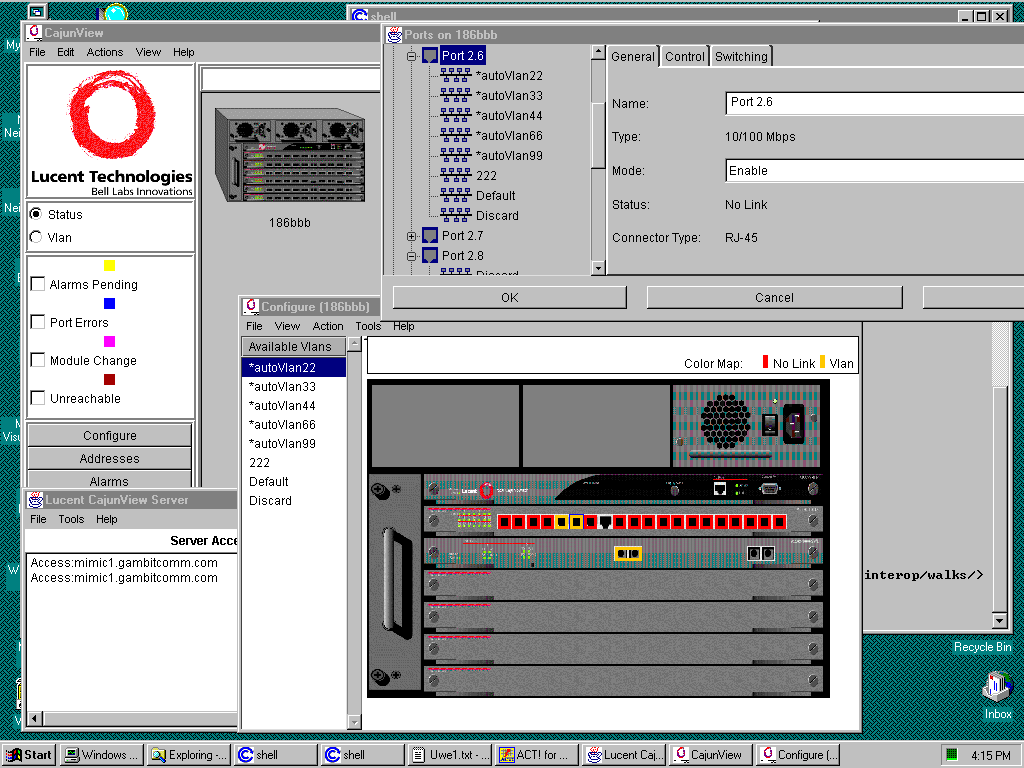

Cajunview is managing VLANs through a simulation of a Lucent P550 CajunSwitch

SMONMaster is talking to a simulation of a Lucent P330 CajunSwitc

The following image shows a simulation of a Nortel Networks Switch as seen through the Passport device manager.

EPICenter is managing a simulation of a Extreme Networks Summit Switch.

VLAN information from a Foundry Networks BigIron router from our Interopnet 2000 network simulation as seen via Foundry IronView Network Manager.
