The simulated agent generated by MIMIC provides all SNMP variables to IBM Nways Campus Manager so it can build a picture of the IBM 2210 router and can provide management functions (tree of functions on the left) to perform on this simulated router.


graph image 100 KB

The simulated agent generated by MIMIC provides all SNMP variables to IBM Nways Campus Manager so it can build a picture of the IBM 2216 router and can provide management functions to perform on this simulated router.


graph image 32 KB

IBM Nways Campus Manager shows an ATM topology map made with simulated ATM switches IBM 8265 and IBM 8210. The MIMIC simulator provides all the SNMP variables from the ATM MIBs so that the IBM Nways Campus Manager can build a map showing the topology of these ATM devices.


graph image 57 KB

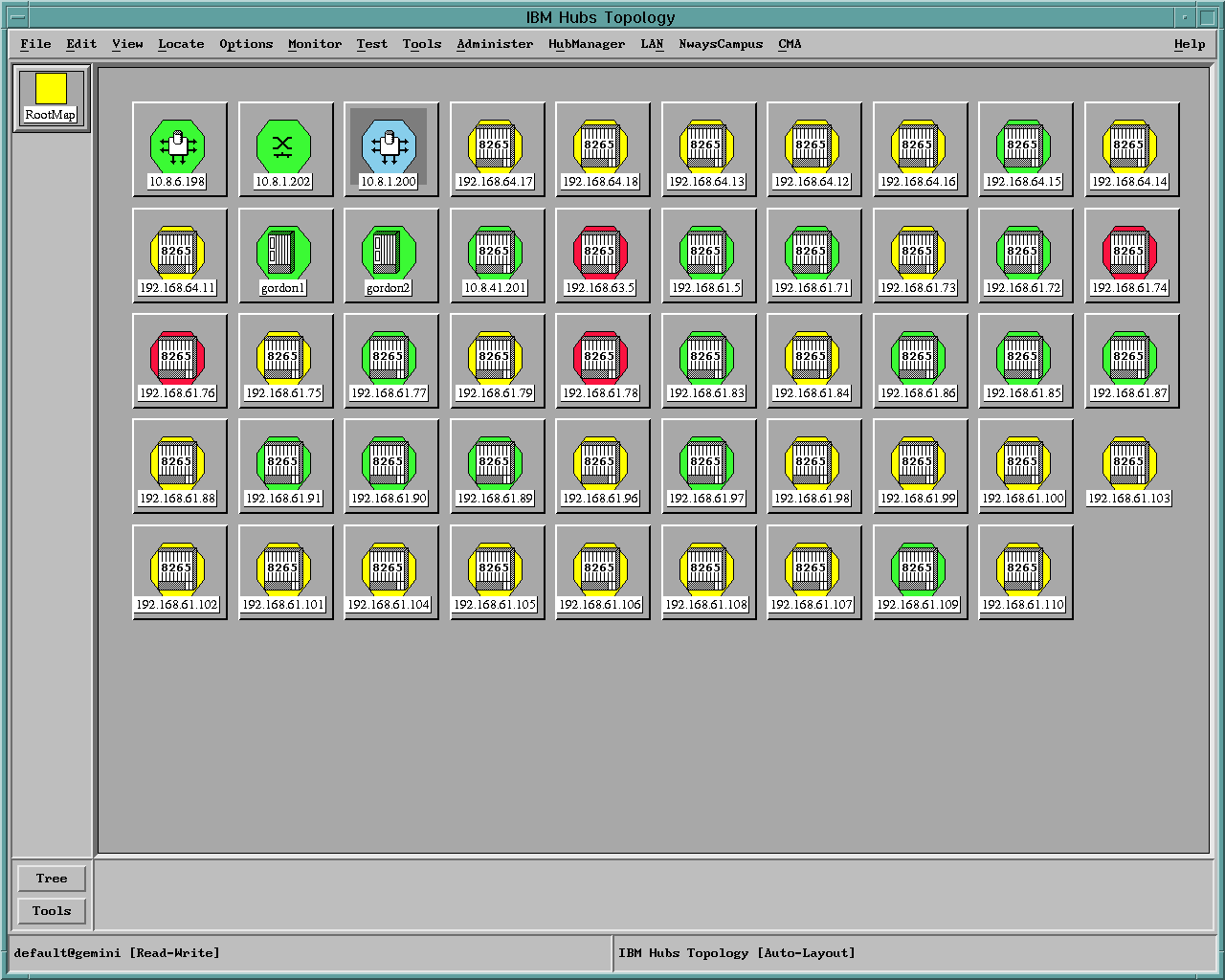

IBM Nways Campus Manager shows a Hub topology map made of simulated devices IBM 8265, IBM 8210 and IBM 8271. The MIMIC simulator provides all the SNMP variables so that the IBM Nways Campus Manager can show a topology of different simulated IBM HUBs.
